SKU:K/KA/IH/BOS/S/00006

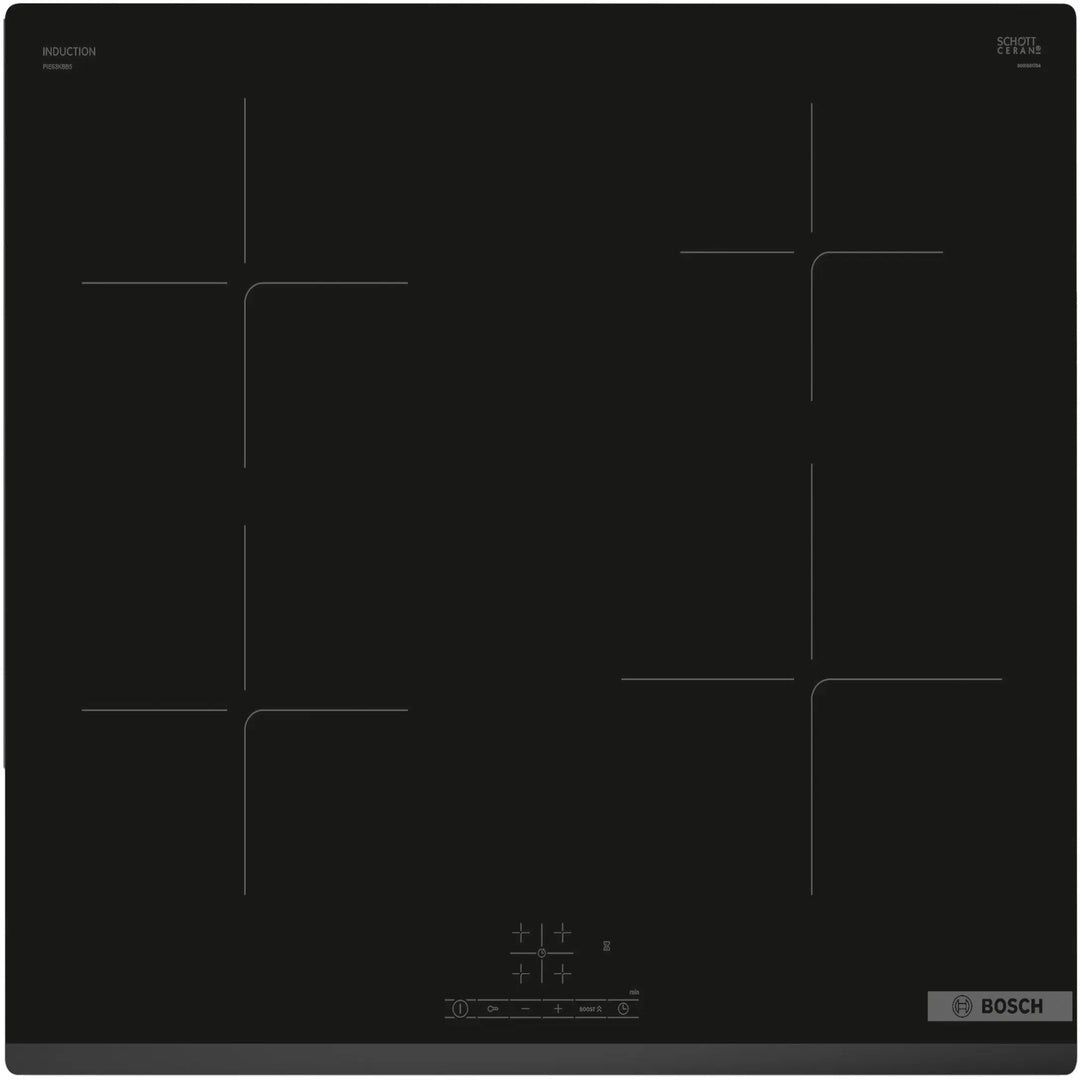

Bosch 4 Zones Induction Hob PIE63KBB5E
Bosch 4 Zones Induction Hob PIE63KBB5E
By Bosch
Couldn't load pickup availability
Will be delivered in 6-10 days
Induction Hobs Installation by Bosch
Installation is handled by Bosch. We will raise an installation request after product delivery. A brand authorized technician will contact you within 48 -72 working hours. Standard installation is free.
Contact Bosch @ 1800 266 1880
Share
| Product Specifications | |
|---|---|
Brand |
Bosch
|
Product Series |
Series 4
|
Appliance Type |
Built-In 4 Zone Induction Hob
|
Appliance Installation Type |
Built In
|
Finish |
Black Glass
|
Controls |
Touch Control
|
Product Size (cm) |
592 mm
|
Number of Zones |
4 Zones
|
Surface Material |
Ceramic Glass
|
Number of Power Levels |
17 Power levels
|
Supply Voltage |
220-240 V
|
Total Load (Watts) |
7400 W
|
Timer |
Yes |
Keep Warm Function |
No |
Child Lock |
Yes |
| Product Dimensions | |
Product Width (mm) |
592 mm
|
Product Depth (mm) |
522 mm
|
Product Height (mm) |
51 mm
|
| Cut-Out Dimensions | |
Cut-Out Width (mm) |
560 mm
|
Cut-Out Depth (mm) |
500 mm
|
Cut-Out Height (mm) |
51 mm
|
| Warranty | |
Brand Warranty |
2 Years
|
Key Features
- Size : Built-in Induction Hob 60 cm
- 4 induction cooking zones
- Type of Frame : Bevel Front
- Heating with booster : On all zones
- Type of control : Touch Control
- Dimensions (L x B x H) : 592 x 522 x 51 mm
- Dimensions of the heating elements : 2 x (18,0 cm Ø), 1 x (14,5 cm Ø), 1 x (21,0 cm Ø)
- Power of the heating elements (maximum values shown, depending on gas type) : 1 x 1.4 (2.2), 1 x 2.2 (3.7), 2 x 1.8 (3.1) kW
- Digital 2 stage residual heat indicator
- Cooking zone flexibility : Ring Zone
- Minimum worktop thickness : 16 mm
- Connection rating : 7400 W
- Length electrical supply cord : 110 cm
- Hotplate control settings : Variable 17-stage power settings for each zone
- Connection rating : 7400 W
- Voltage : 220-240 V
- Frequency : 50; 60 Hz
- Residual heat indicator : Separate
- Location of control panel : Front
- Basic surface material : Ceramic
- Touch Select : Selection of the desired cooking zone and easy setting of the desired power level.
- Power Boost : When you want to get quick and easy meals on the table even faster, Power Boost can help. This practical feature adds a boost of power for ultra-quick heating. Use it on your induction hob to boil large quantities of water – and heat up to 35% faster compared to the highest power level.
- Quick Start : The Quick Start function detects where you have placed the cookware and after switching-on, it automatically selects the corresponding cooking zone on the control interface. You can get started straight away and select the desired cooking level for your cookware without delay.
- Restart : If something goes wrong or boils over, the hob automatically turns itself off and saves the last selected setting. This means you can clean it conveniently and restore the settings at the touch of a button.
- Timer with switch-off function : Timer usage in its consummation. Once the set time is over, the assigned cooking zone is turned off automatically. This saves you another hand movement.
- Child Lock : Now kids can no longer turn on the hob by mistake. The Child Lock function prevents unauthorized use of the hob with just one long press of a button.
- Induction Technology : Induction hobs generate heat only where it is needed – in the base of the pan. What does this mean for you? More safety and more convenience. The lower temperature keeps both big and little hands safe from burning. Not only that, but an induction hob saves in average 20% energy compared to a glass-ceramic hob, while e.g. boiling two litres of water twice as fast.
- Pan Recognition : Pan recognition, and it won't work when there is no pot on the induction
- 8mm Toughened Glass Surface : Designed to withstand everyday cooking demands, the durable glass surface is both elegant and easy to clean.
Product Installation
Product Installation
To fit a built-in appliance, please provide the cabinet/cutout cutting dimensions to your kitchen manufacturer. The cutting dimensions for each model are mentioned as carcass dimensions or cutout dimensions in the description table of that model. Please ensure that the back of the carcass (cabinet) is left open for ventilation, or air slits are created for ventilation. If there is no ventilation in the carcass (cabinet), the product may fail, and the warranty will be null and void. Please note that you must provide an electrical point as per the specifications in the product manual for operating the built-in appliance. Preferably, this point should be behind the built-in appliance.
What is the process for installation once I have purchased a built-in appliance from Decure.in?
- Mounting the built-in appliance into the cavity created for the appliance.
- Product demonstration.
Please note that installation charges need to be paid directly to the respective company technician. For the correct operation of your appliance and validity of the warranty, installation by a company technician is mandatory.
What is covered under standard installation for a built-in appliance?
- Mounting of the built-in appliance into the platform cavity and connection with electric/gas supply. Please note that the wire/socket/pipe to connect the built-in appliance with electric/gas supply may need to be purchased separately and may not be included in the product package and installation cost. This can be purchased from the technician who comes for installation.
- Product demonstration.
Please note that installation charges need to be paid directly to the respective company technician. For the correct operation of your appliance and validity of the warranty, installation by a company technician is mandatory.
What is not covered under standard installation for a built-in appliance?
- Installation charges do not include any type of civil work/drilling/woodwork or cutting work for creating a cavity in kitchen units for installing the built-in appliance. The cutting dimensions for each model are mentioned as carcass dimensions or cutout dimensions in the description table of that model. The cutout structure needs to be ready before company personnel are called for installation of the product.
- In case the customer enters into any arrangement to do any civil work with the service provider, then it will not be within the scope of any warranty or service arrangement, and the company or Decure.in will not be responsible for any deficiency in the service/damage to property on this count.
- Dismantling/shifting of the old appliance.
Who should open the product packaging, and what should you do after receiving the product to keep the warranty and replacement eligibility valid?
This product is supposed to be opened by the Brand Qualified Technician at the time of Installation for the Warranty to be valid. Please do not open this product on your own. We will not be able to replace the product if the packaging is opened by the Customer & the product is found damaged/defected.
If the packaging is opened, it will be deemed that the product is accepted by the Customer as is.
Once you receive the product, we will help you book an installation appointment with the Brand. Please make sure the installation takes place within 10 days from receipt of product for us to be able to replace the product in case of damage.
T & C.
Replacement & Returns
Replacement & Returns
Decure only offers a 7 Day Replacement policy on all its products.
We accept replacement requests for delivered products only in the following cases:
- If the Product received by you is damaged/defective.
- If the Product received by you differs from the description on the website.
- If the Product received by you is incorrect from the product shown on the website.
- If the Product received by you is missing a part or accessory.
Returns are not accepted for the following reasons:
- If the Product is "No Longer Needed" for whatever reason by the Customer.
- If the Product does not fit the Customers space of use. It will be the customers responsibility to study the sizes/dimensions of the Product mentioned on the website before placing the Order. No return requests will be entertained for size/fit issues.
- If the Product information is wrongly read by the Customer. It will be the customers responsibility to read and understand the specifications/details of the Product before ordering if from Decure.
The information provided in the product description is information that is provided by the respective brand via its catalogs, brochures and website from time to time. We strive to ensure accuracy; however, Decure is not responsible for any errors, inaccuracies, or performance issues that may arise from the product descriptions or specifications supplied by the manufacturers. Any deviation in product performance or features from the stated values is outside our control. We encourage customers to reach out to the respective brand for any concerns or clarifications regarding product performance and specifications.
Most products sold on Decure come with warranty and service support from the respective brands. For any product defects or performance-related issues, a brand technician will attend to the problem. The brand will repair or replace the product as per its warranty policy. The resolution time will be in accordance with the brand's warranty policies. Please note that Decure does not have control over the brand's decisions or the resolution timeline.
-
