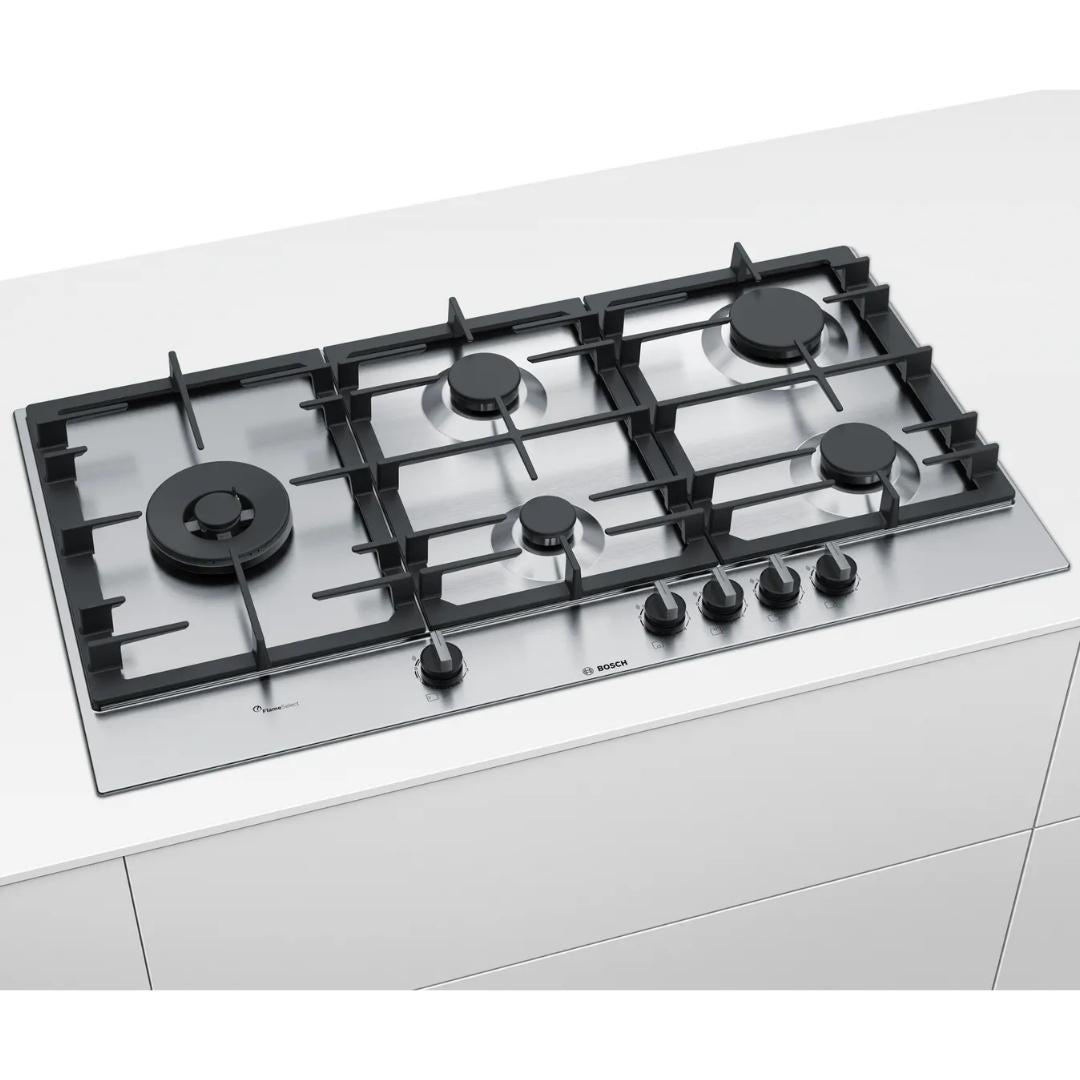

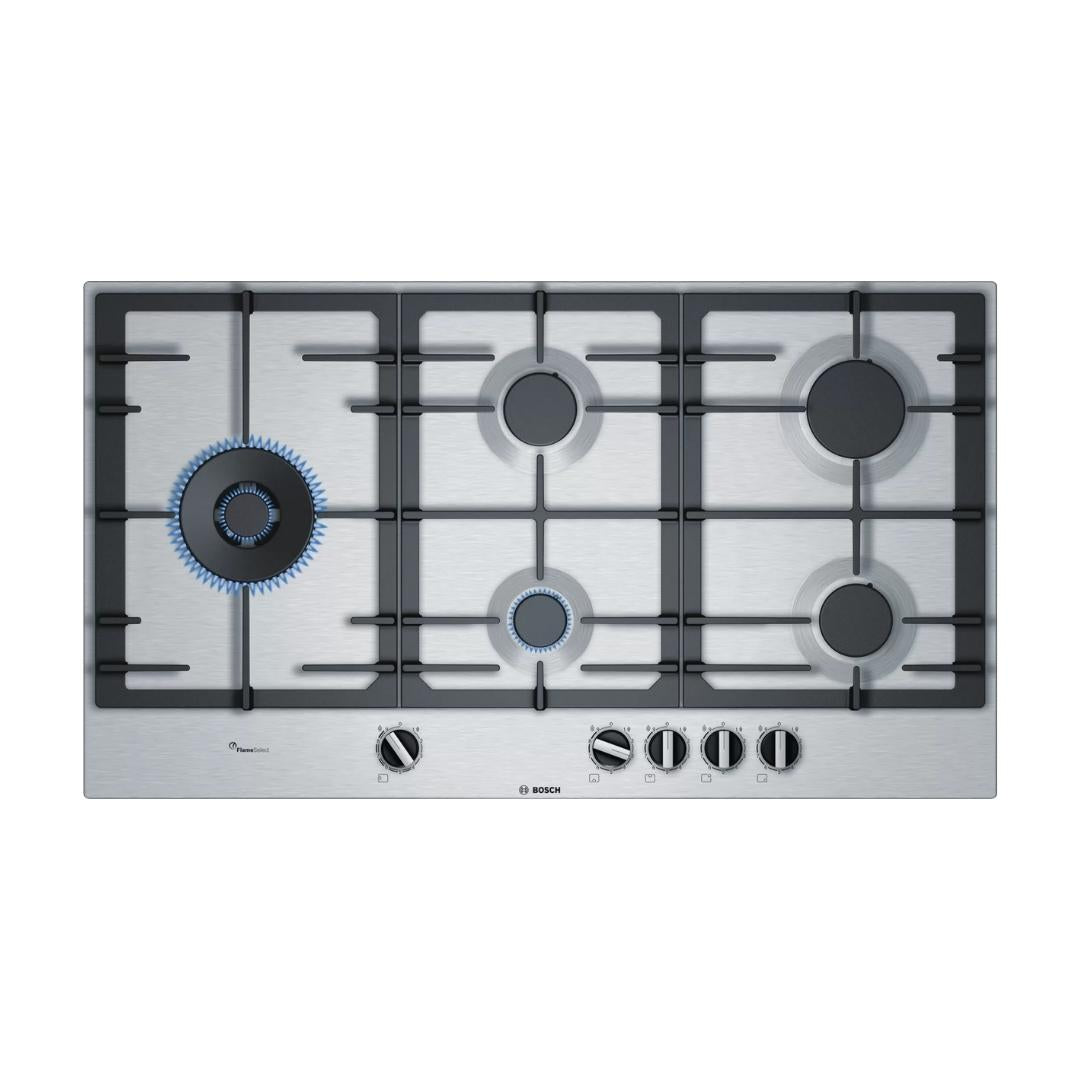

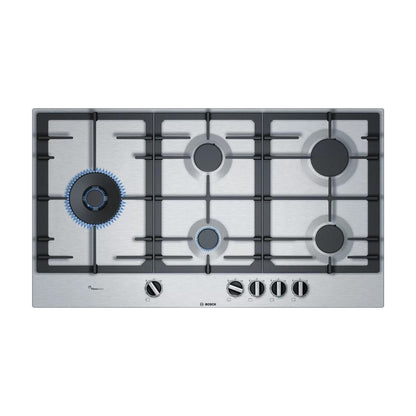

Bosch 90 cm 5 Burner Hob Serie 6 Flame Select PCS9A5C90I
Bosch 90 cm 5 Burner Hob Serie 6 Flame Select PCS9A5C90I
By Bosch
Couldn't load pickup availability
This product is generally delivered in 6-10 days
Hobs Installation by Bosch
Installation is handled by Bosch. We will raise an installation request after product delivery. A brand authorized technician will contact you within 48 -72 working hrs. Standard installation is free. Conversion for piped gas connection is charged extra.
Contact Bosch @ 1800 266 1880Â
Share
Product Specification | |
---|---|
Brand |
Bosch
|
Product Series |
Serie 6 Flame Select Series
|
Finish |
Stainless Steel
|
Product Size (cm) |
90 cm
|
Can Be used as Cooktop? |
No |
Number of Burners |
5 Burners
|
Burner Specifications |
1 x 5.0 kW + 1 x 3.0 kW + 2 x 1.75 kW + 1 x 1.0 kW
|

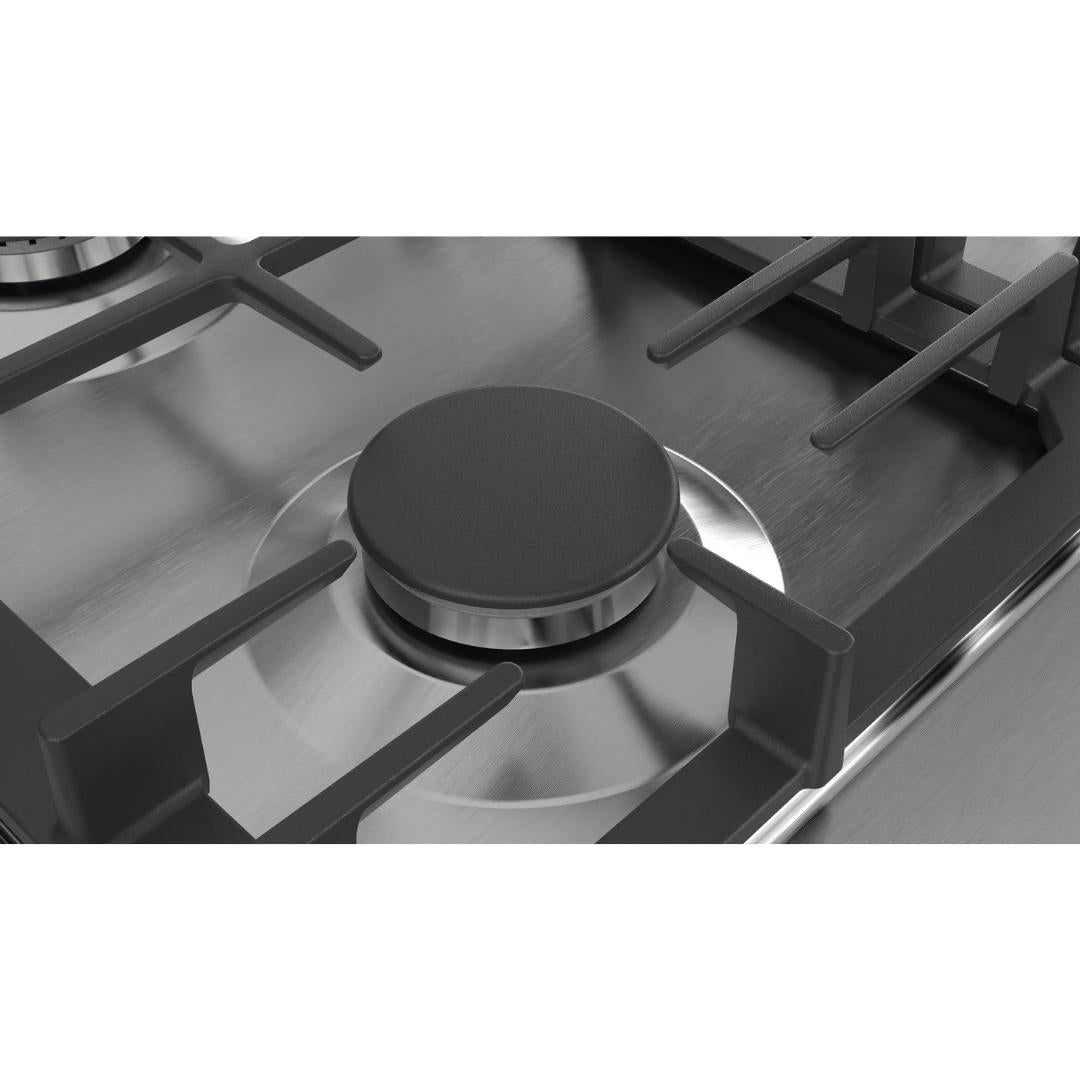

Burner Material |
Aluminium Burners
|
Pan Support |
Cast Iron
|

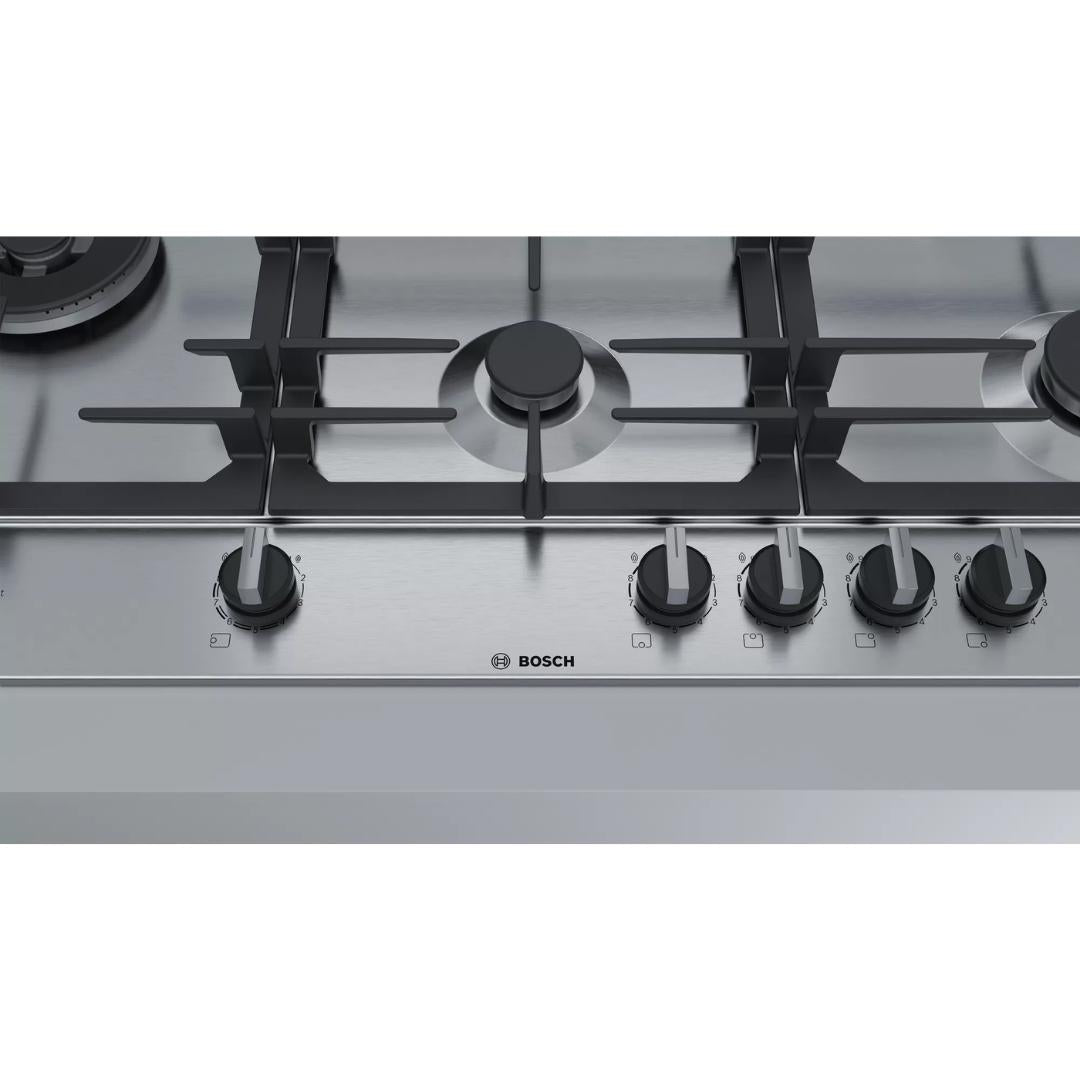

Ignition Type |
Electric Auto Ignition
|
With FFD Feature |
Yes |

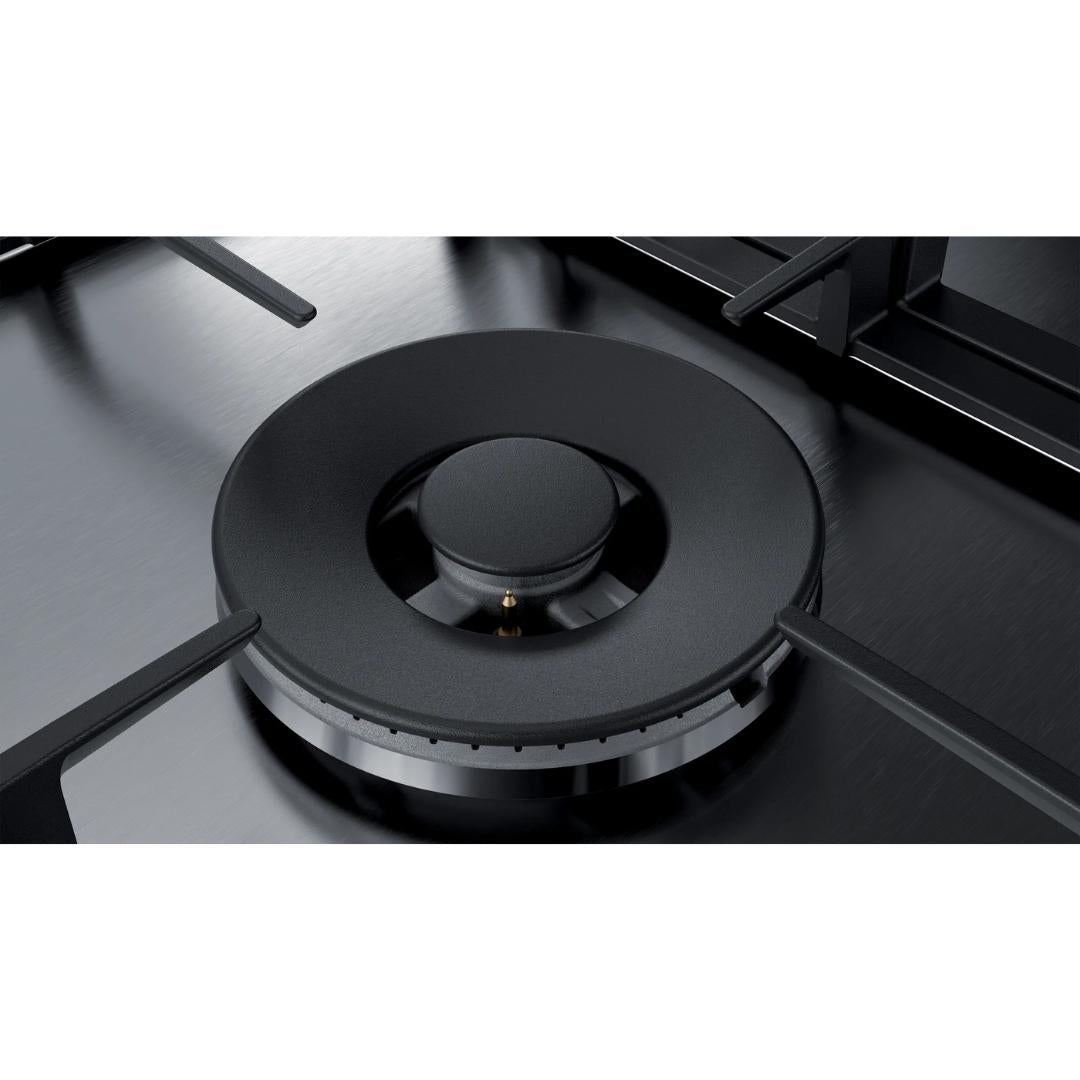

With Triple Ring Burner |
Yes |
With Sealed Burners |
No |
Product Dimensions | |
Product Width (mm) |
915 mm
|
Product Depth (mm) |
520 mm
|
Product Height (mm) |
45 mm
|

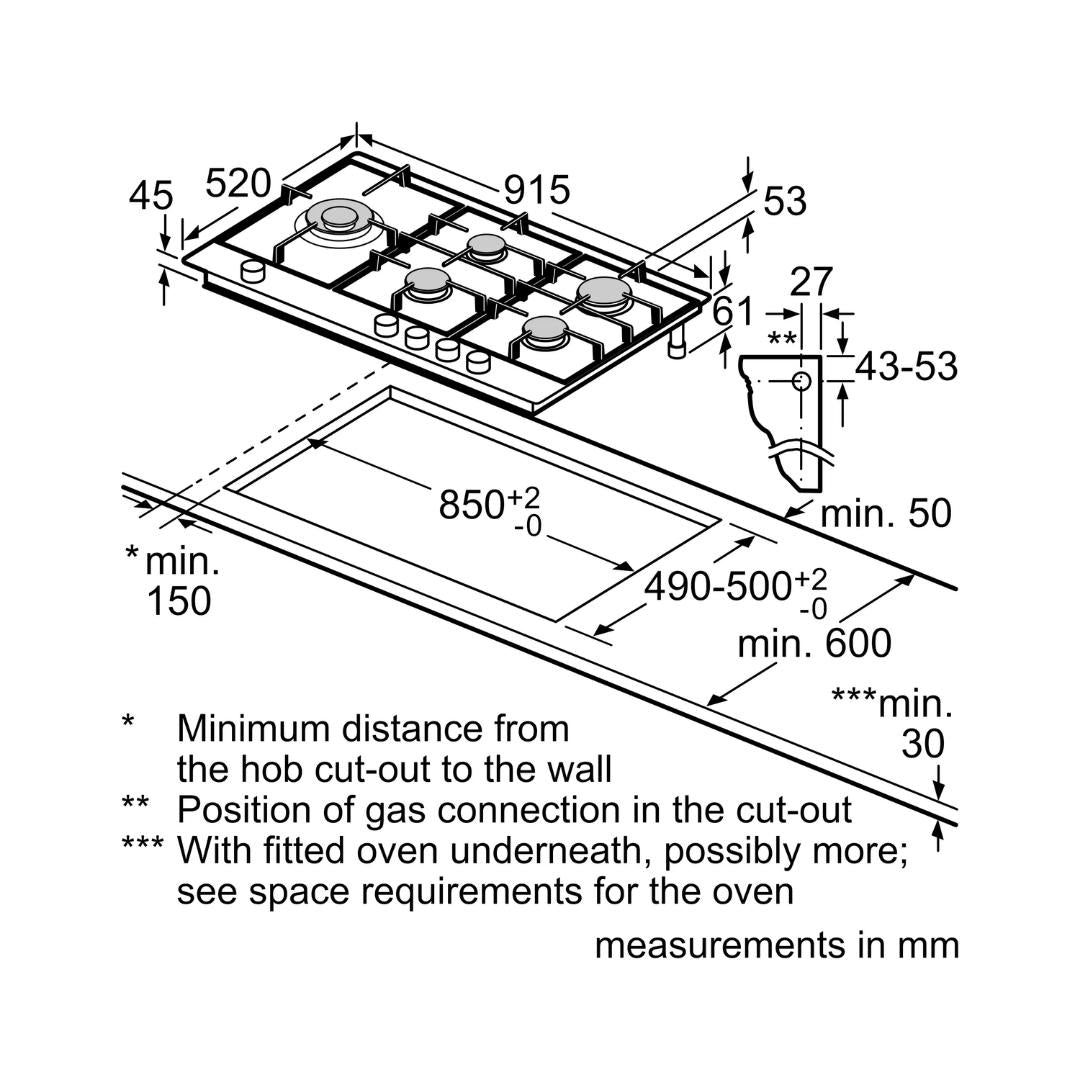

Cut-Out Dimensions | |
Cut-Out Width (mm) |
850 mm
|
Cut-Out Depth (mm) |
500 mm
|
Warranty | |
Brand Warranty |
2 Years
|
Manufacturer / Importer Details | |
Name |
BSH Household Appliances Manufacturing Pvt. Ltd.
|
Address |
Arena House, 2 Floor, Main Building, Plot No. 103, Road No. 12, MIDC, Andheri, Mumbai - 400 093
|
Brand Customer Care |
1800 266 1880
|
Customer Care Email |
service.in@bosch-home.com
|
Country of Brand Origin |
Germany
|
Key Features
- Size: 90 cm
- 5 burners
- Stainless steel gas hob
- Aluminium burners
- FlameSelect
- Flame failure safety device
- Cast iron pan supports for wobble free cooking

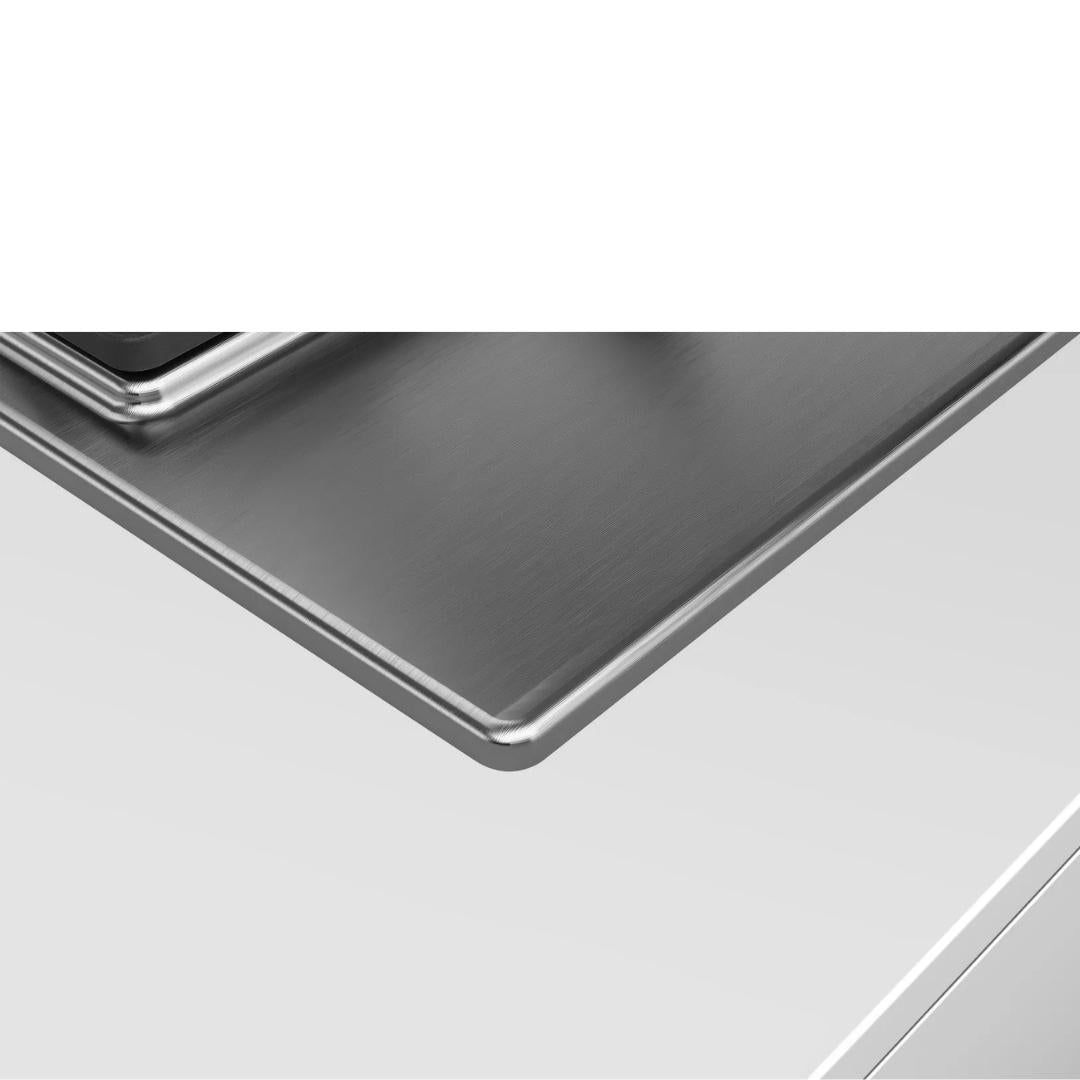

- Stainless steel hob which is easy to clean
- Appliance dimensions (HxWxD): 45 x 915 x 520 mm
- Cut-out dimensions (HxWxD): 45 x 850-852 x 490-502 mm
- Stainless Steel
Product Installation
Product Installation
To fit a built-in appliance, please provide the cabinet/cutout cutting dimensions to your kitchen manufacturer. The cutting dimensions for each model are mentioned as carcass dimensions or cutout dimensions in the description table of that model. Please ensure that the back of the carcass (cabinet) is left open for ventilation, or air slits are created for ventilation. If there is no ventilation in the carcass (cabinet), the product may fail, and the warranty will be null and void. Please note that you must provide an electrical point as per the specifications in the product manual for operating the built-in appliance. Preferably, this point should be behind the built-in appliance.
What is the process for installation once I have purchased a built-in appliance from Decure.in?
- Mounting the built-in appliance into the cavity created for the appliance.
- Product demonstration.
Please note that installation charges need to be paid directly to the respective company technician. For the correct operation of your appliance and validity of the warranty, installation by a company technician is mandatory.
What is covered under standard installation for a built-in appliance?
- Mounting of the built-in appliance into the platform cavity and connection with electric/gas supply. Please note that the wire/socket/pipe to connect the built-in appliance with electric/gas supply may need to be purchased separately and may not be included in the product package and installation cost. This can be purchased from the technician who comes for installation.
- Product demonstration.
Please note that installation charges need to be paid directly to the respective company technician. For the correct operation of your appliance and validity of the warranty, installation by a company technician is mandatory.
What is not covered under standard installation for a built-in appliance?
- Installation charges do not include any type of civil work/drilling/woodwork or cutting work for creating a cavity in kitchen units for installing the built-in appliance. The cutting dimensions for each model are mentioned as carcass dimensions or cutout dimensions in the description table of that model. The cutout structure needs to be ready before company personnel are called for installation of the product.
- In case the customer enters into any arrangement to do any civil work with the service provider, then it will not be within the scope of any warranty or service arrangement, and the company or Decure.in will not be responsible for any deficiency in the service/damage to property on this count.
- Dismantling/shifting of the old appliance.
